Refinery and Chemical Plants
N2, O2, and H2 for Purging, Drying, Cooling or Blanketing
Temporary Supply of N2, O2, and H2

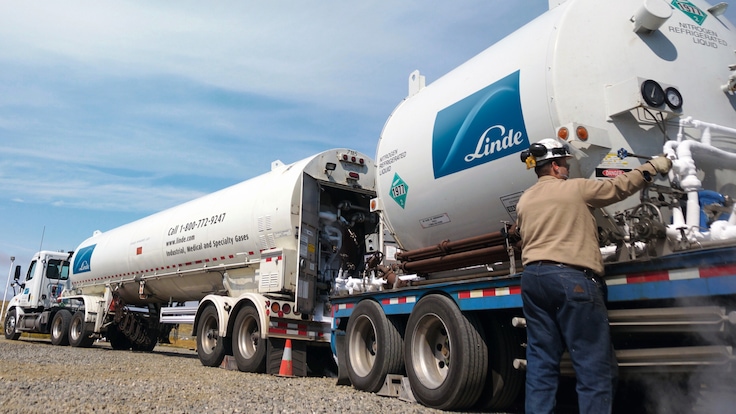

When your normal supplies of industrial gases are unable to meet the flow, pressure or temperature of your temporary requirements, or your supply has been interrupted, Linde Services Inc. can help satisfy your temporary supply needs. With a fleet of pumpers, vaporizers, transports and tube trailers nearly any combination of pressure temperature and flow rate can be supplied for hours, days or months. Mobile Nitrogen Generation Service
Drying and Purging
Full-service drying is a complete problem-solving package for drying process systems. The use of our Mobile Nitrogen Pumpers can provide nitrogen at high flow (up to 540,000 scf per hour per unit), high pressure (up to 6,000 psi) and high temperatures (up to 600°F, 315.6°C). These capabilities, combined with the -90°F (-67.8°C) dew point of nitrogen, promote efficient removal of moisture from process systems which translates into time and money savings. We also provide nitrogen to safely purge potentially explosive hydrocarbon and air mixtures from vessels, gas lines, transfer lines and equipment.
Our dry air service complements other refinery turnaround services and offers another alternative to drying process systems. This service can deliver 100% oil-free air at dew points as low as -90°F (-67.8°C) using multi-bed desiccant dryers. The flow rate of each unit is approximately 75,000 standard cubic feet an hour and multiple units are available to meet your needs. Each unit can deliver pressure up to 125 psig, which allows for moisture removal by entrainment. All equipment is mobilized, operated and maintained by our personnel, reducing or even eliminating the need for customer site personnel during the drying process.
Cooling
Reactors operating at elevated temperatures must be cooled down prior to reactor entry when the catalyst has become fouled. Our three offerings, Once-Through, JETCOOL™ and NICOOL® reactor cooling services offer rapid, efficient and unique ways to do just that.
A once-through cool down can be performed on any reactor. Cool gas is introduced into the reactor and flows through it to remove the heat from the catalyst, allowing it to be safely removed. If an appropriate recycle compressor is available, NICOOL service uses liquid nitrogen, controlled by our proprietary system to cool the recirculating gas which then cools the catalyst. The use of this system can reduce nitrogen consumption to a third of what is needed without the recycle compressor. The JETCOOL process is a Linde proprietary recycling system that ties directly into existing processes and enables the recirculation of nitrogen gas for unit cooldown and purging. The system delivers up to 50% reduction in nitrogen gas usage and reduces overall cooldown time by up to 50%. JETCOOL Accelerated Reactor Cooling Literature
Blanketing
Gases such as nitrogen and carbon dioxide are commonly used as protective atmospheres in storage tanks and vessels containing flammable liquids or solids to prevent fire or explosion. These gases are also used to maintain a dry inert atmosphere to prevent corrosion of industrial cleaned piping and vessels.
Cleaning
Whether you have a fired heater, or pipeline that has become dirty or new piping that needs cleaning, we offer a complete line of cleaning and drying services that can be tailored to each of your individual projects. An engineering analysis will determine which option will meet your cleaning and dew point specifications in the most cost-effective way possible.
One of our most frequently requested methods is the SANDJET™ service for internally cleaning both fired heaters and industrial piping. Using high-velocity, nitrogen-propelled, non-hazardous cleaning materials, the SANDJET service is often the fastest, most effective method available for cleaning.
